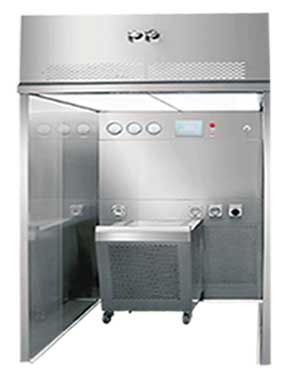

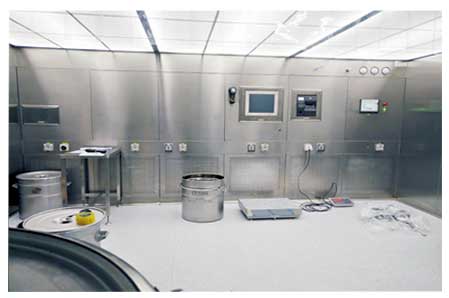

負壓稱量室是制藥行業進行藥粉稱量、分裝工藝環節專用的凈化設備，垂直單向氣流在主工作區不斷循環，有效的控制藥粉外溢和上揚，防止對人體的吸入危害，同時避免交叉污染，起到保護壞境及室內人員安全的作用。

工作原理

在負壓稱量室內進行操作時產生的少量粉塵首先由初、中效過濾器過濾后，再通過風機送入到高效靜壓箱，經高效過濾器過濾后有80 ~ 90%的潔凈空氣在均流膜的作用下均勻地送入到稱量罩工作區域內，有10 - 20%的潔凈空氣直接排至稱量罩外，這樣在稱量罩的工作區域內始終形成負壓氣流，確保粉塵不會向外污染房間。

產品特性及配置說明：

●模塊化設計、安裝靈活、簡單，內側和地面連接處采用一體式圓弧結構；

●風速偵測自動變頻系統，使工作區風速始終處于均勻穩定運行狀態（0.45土20% m/s）；

●過濾器前后壓差顯示（可采用壓差表直接顯示或觸摸屏顯示），實時監控各道過濾器的有效運行，并有壓差超限報警顯示；

●主工作區獨特的氣流分流設計，確保稱量罩工作區內為負壓氣流，有效保護了人員安全，避免了環境污染和產品交叉污染；

●智能化控制模式和故障報警系統，有效保證運行的可靠性；

●人性化的設計，使各類過濾器更換操作更加方便，獨特風道設計，有效控制了整機工作噪聲；

●配置多個防護等級為|P66的工業插座，用于設備內電子稱量器具取電用；

●可根據用戶要求配置全套西門子觸摸屏、PLC控制器及變頻器；也可簡易配置，直接采用變頻器的外接面板調節控制；

●可選裝冷卻盤管或空凋，平衡運行過程中產生的熱量；

●全部根據用戶要求定制非標尺寸的稱量室。

The negative pressure weighing room is apurification device specialized for medicine powder weighing  flling in pharmaceutical industry. Thevertical unidirectional flow keeps circulating in main working area to effectively control medicine spiand rising to prevent inhalation hazard to humanbody, mean while to avoid cross contamination  protect environment   indoor personnel safety

Working principle

A small amount of dust generated during operationin the weighing chamber is first fitered by primary  medium efficiency filters,  then fed into highefficiency

plenum chamber through fan, after filtered by HEPA filter, about 80-90% clean air isuniformly fed into the weighing hood working area under effect of membrane.   10-20% clean air isdirectly exhausted outside weighing hood, thushere is always negative pressure air flow in the working area of weighing hood, to avoid dustpollution outside to the room.

Product features   configuration instructions

●The modular design is suitable for flexible  simple installation, the internal  ground connections adopt integrated arc structureo

●The wind speed monitor automatic frequency converting system is used to make the wind speed at working area always at uniform  steady state(0.45+20%m/s)

●The filter front  rear pressure difference display(displayed by differential pressure gauge  touch screen) can real-time monitor the effective operation of each filter, with pressure difference over limit alarm display

●The unique shunt air flow design at main working area can ensure that the air flow at weighing cover area is negative pressure, to effectively protect the personnel safety  avoid environmental pollution  product cross-contamination

●The intelligent control mode  fault alarm system can effectively guarantee the reliability of operation

●The user-friendly design can make the filter change more convenient Unique wind duct design can effectively control the machine operation nolse

●Various iP66 industrial sockets can be configured for electronic weighing device power supply

●The full set of Siemens touch screen, PLC  inverter can be configured according to user requirements,  it can be easily configured to directluse inverter external panel to make adjustment  control

●The cooling coil  air conditioner is optional to balance the heat generated in the process of operation

●The non-standard size weighing room can be customized according with customer requirement
