層流罩是一種用于制藥、 食品、微生物研究等場所提供局部高潔凈度等級的凈化設備，它提供一種垂直單向氣流，可以保證工作區內的潔凈度達到百級的要求，是無菌室和潔凈車間的理想配套設備。

●配置H14液槽密封高效過濾器，帶過濾器壓差顯示，實時監控高效過濾器的有效運行；

●自主開發的小型液昰觸摸屏控制系統，無極調速，操作方便、簡潔；多組風機可實現群控操作；

●可選裝風速傳感器，自動調節系統的送風風速，使工作區風速始終處于均勻穩定運行狀態（0.45士20% m/s）；

●根據用戶要求定制非標尺寸及不規則形狀的層流罩；

●技術密封技術，技術號：乙L201420300991.0。

Laminar flow is a purification device used to provide partial high cleanliness level in pharmaceutical, food, microbiological research  other places. It provides a kind of vertical unidirectional air flow to ensure that the working area can reach one hundred cleanliness requirements, which is an ideal equipment for sterile room  clean room.

Product features  configuration instructions

●The laminar flow hood is separated by hanging type  supported type structure, for flexible  simple installation;

●The independent modular air supply system can effectively guarantee the uniformity  stability of air flow;

●The large size laminar flow can apply external wind chassis structure for low noise  strong versatility, with configuration of air conditioning system;

●The unique negative pressure seal design(patented technology) can easily pass PAO scan validation;

●H14 tank seal high efficiency filter is configured with filter differential pressure display to real-time monitor the effective operation of filter;

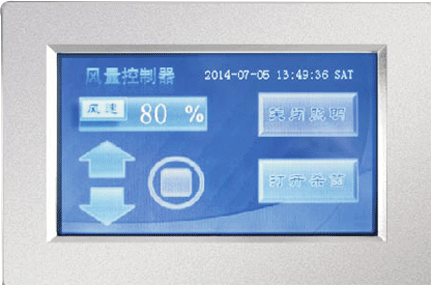

●It is installed with independent developed small LCd touch screen control system for stpless speed regulation  simple operation; multiple sets of fans used can achieve group control operation;

●The wind speed sensor is optional to automatically adjust the system wind speed, to make the wind speed at working area always in uniformsteady state(0.45± 20% m/s);

●The laminar flow hood can be customized to non-standard size  irregular shape according to user requirement;

●Patented sealing technology with patent number: ZL201420300991.0
