技術特點：

集成過氧化氫蒸汽滅菌發生器，自動完成將過氧化氫達到氣體濃度30PPm左右（干法/濕法）滅菌 → 通風外排 → 結束、出料，包括：濃度監測、溫度檢測、濕度檢測、內室壓差檢測、階段計時功能（可生成報表，進行實時監控和記錄并打印）；

●汽化過氧化氫具有良好的物料兼容性，對不銹鋼、鋁、玻璃、聚碳酸脂、大部分的醫用硅樹脂等均具有良好的兼容性；

●易分解，無有害殘留，最終分解為水和氧氣；

主要功能：

●西門子可編程控制器（PLC）自動控制設備各階段的運行

●送、排風系統均采用H14液槽密封高效過濾器；

●具有獨立的通風排殘單元、風機、氣動蝶閥和排風管路，能快速置換艙內的過氧化氫氣體，并防止其進入HAVC系統內；

●進、出料為雙扉門結構，具有氣動密封、氣動鎖緊及工作狀態下的雙門互鎖功能；系統對艙內的溫度、濕度、壓力可實時檢測，并儲存。

Technical characteristics:

Integrated hydrogen peroxide steam sterilization generator automatic completion will reach about 300PPm hydrogen peroxide gas concentration(dry/wet) sterilization ventilation, drainage, over discharge, including concentration detection, temperature detection  humidity detection, chamber pressure difference detection, phasetiming function(which can generate reports, real-time monitoring  recording  printing.

VHP sterilization process of

Preparation work 》Leak detection 》Dehumidification 》Sterilization 》 Exhaust 》Complete

The advantages of vaporized hydrogenperoxide sterilization:

●Low temperature, sterilization of temperature sensitive materials, broad-spectrum bactericidal effect;

●There is no need to design a pressure vessel forsterilization apparatus;

●The vaporized hydrogen peroxide has good compatibility of materials, have good compatibility of stainless steelaluminum, glass, polycarbonate , most of the medical silicone resin etc;

●Easily decomposed  free  harmful residues  eventually broken down into water  oxygen;

Main functions:

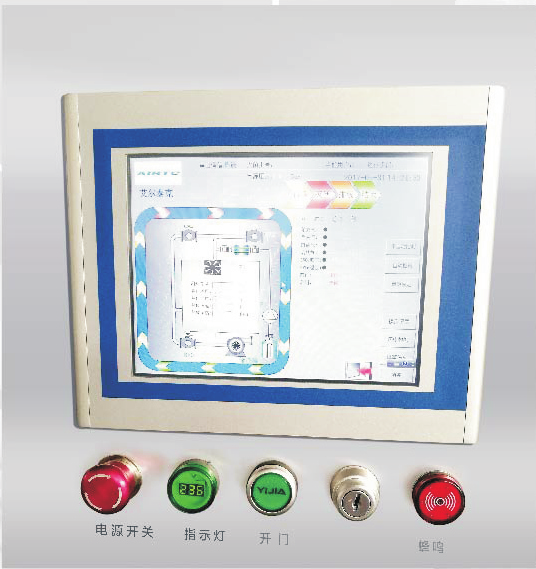

●SIEMENS programmable logic controller(PLC) automatic control equipment at all stages of operatione;

●Air supply   exhaust system using H14 liquid sealed HEPA filter;

●With independent ventilation unit, fan, pneumatic butterfly valve  exhaust pipe, it can quickly replthehydrogen peroxide gas in the cabin  prevent it fromentering the HAVC system;

●Inlet  outlet for double door leaf structure. with pneumatic seal, pneumatic locking  working condition of double inter locking functiono;

●The temperature, humidity  pressure in the cabin can be detected  stored in real time;

外形尺寸表 Dimension table
