傳遞窗

2020-04-22

次

詳細介紹：

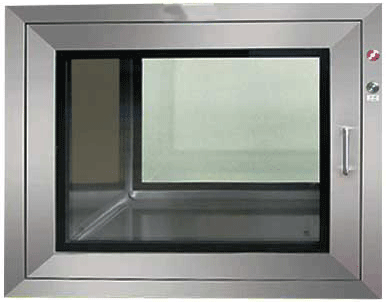

傳遞窗是潔凈室的輔助設備，主要用于潔凈室之間、潔凈室與非潔凈室之間的小件物品的傳遞，以減少潔凈室的開門次數。傳遞窗包括：普通傳遞窗、潔凈傳遞窗、吹淋傳遞窗等。

潔凈傳遞窗配置說明：

●不銹鋼304材質，內部整體圓弧結構，方便清潔；

●帶PAO注入接口及測試接口，采用304不銹鋼快速連接頭；

●配置H14液槽密封高效過濾器，帶高效壓差表；

●帶紫外線殺菌燈，殺菌時間可任意調節，并帶殺菌計時及殺菌時間累計功能可任意設置殺菌燈是否和風機同時啟動；

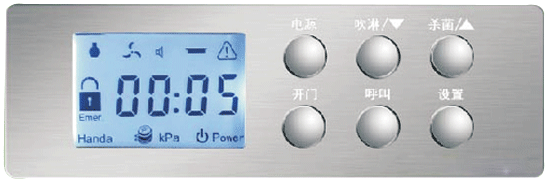

●自主開發的液晶面板控制器，兩門磁力鎖互鎖，有自動及手動二種模式供用戶自己設置，在自動模式下有多種功能用戶可自行設置，帶時間及功能顯示，帶呼叫功能；

●可任意設置關門后同時自動啟動風機送風模式；

●內嵌式門，雙層黑邊鋼化玻璃，帶干燥劑；

●風機：定制專用風機，送風時間可調節；

●首創PAO檢測模式，輕松完成PAO的檢測；

●接受用戶特殊設計。

The pass box is the auiliary device to the clean room. It is used to transfer small objects between clean rooms, between clean room non-clean room so as to reduce the frequency of opening the doors. The pass box includes normal pass box, clean pass box air shower pass box etc.

Clean pass box configuration instructions

●It adopts stainless steel 304 by overall arc structure inside, for easy cleaning;

●lt provides pao injection port test port, by stainless steel 304 quick connector;

●lt is configured with H14 tank seal high efficiency filter with high efficiency differential pressure gauge;

●lt has ultraviolet germicidal lamp, with adjustable sterilization time, sterilization timing

sterilization time cumulative function. The simultaneous starting of germicidal lamp can be set up;

●The LCD panel controller is developed independently TWO-door magnetic locks are interlocked with automatic manual modes for user setting. There are multiple functions under automatic mode. Such as time function display, call features;

●After door close, automatic starting of fan blowing mode can be set up simultaneous;

●lt has embedded door with double layer black border tempered glass, with desiccant;

●lt has customized fan with adjustable air blowing time;

●lt applies new air port design(at high clean area) to increase internal positive pressure, with air flow adjustable;

●User specified design is acceptable.
